TRUCK EXPLORER V3 (2014)
Truck Explorer V3 kit has main operations for Mercedes and MAN trucks.
All licenses at 2014 year state status.
Software version 3.0
VEI V3 device does not have the WIFI mode, works only via USB.
VEI V3 supports DirectConnect 1 cable. Not supported: DC2, DC2M, DC2U.
Truck Explorer V3 kit does not get any updates from 2014 year.
You will find the licenses that are already included in the table below.
Included licenses:
|
|
V3 |
V4 |
V6 |
|
|
Software v.: |
3.0 |
5.9 |
6.xx |
|
|
License: |
2014 |
2018 |
2019 or later |
Functions |
1 |
MB MEMO |
included |
included |
available |
PLD (MR) external FLASH & EEPROMs Read&Write by OBD; Checksum. By OBD or DC/DC2 |
2 |
MB KEYS |
included |
included |
available |
Key programming on PLD (MR). MR and FR IMMO OFF. By OBD or DC/DC2 |
3 |
MB CALC |
included |
included |
available |
Calculates codes for VeDoc ( X1, X2, X8); FDOK (XT, XS, XN) algorithms |
4 |
2011+ |
included |
included |
available |
MEMO; KEYS; CALC functionality with Continental PLD based on XC2287 CPU. PLD firmware v.: 22B; 23E; 24B. By OBD or DC/DC2 |
5 |
2014+ |
not possible |
included |
available |
MEMO; KEYS; CALC functionality with MR Continental XC2287 firmware v.: 23F; 24C; 25B, 26x; By DC/DC2 |
6 |
2018+ |
not possible |
not possible |
available |
MEMO; KEYS; CALC functionality with MR2 XC2288H Continental PLD firmware v.: 30C; By DC2 |
7 |
GS2 DC |
not possible |
not possible |
available |
Gearbox ECU GS2 (EPS3) Read/Write with DC2U tool. VEI V6 is needed. |
8 |
DC |
included |
included |
available |
Operations by Direct Connection 1 cable
DC cable is included. |
9 |
DC2 |
not possible |
included |
available |
Operations by DC2 or DC2M2 tool.
DC2U is NOT supported. |
10 |
CRV |
not possible |
included |
available |
S, ML, GL class CRV & CRV2 Flash&EEPROM R/W via OBD |
11 |
CR (CDI) |
not possible |
included |
available |
V-class CR1 Flash & EEPROM R/W; WSP-CR pairing |
12 |
FR |
included |
included |
available |
FR&CPC - C167, ST10F276 Flash & EEPROM R/W.
OBD and DC2 mode |
13 |
FR BSL |
not possible |
not possible |
available |
FR1; FR2 - C167 Flash & EEPROM R/W in BSL mode |
14 |
CPC BSL |
not possible |
not possible |
available |
CPC0; CPC1 - ST10F276 Flash & EEPROM R/W in BSL mode |
15 |
ADM BSL |
not possible |
not possible |
available |
ADM2; ADM3 - Flash & EEPROM R/W in BSL mode |
16 |
CPC4 OBD |
not possible |
not possible |
available |
CPC4 - TC1796 Flash & EEPROM R/W by OBD |
17 |
CPC4 DC |
not possible |
not possible |
available |
CPC4 - TC1796 Flash & EEPROM R/W in DC mode |
18 |
CPC4 BSL |
not possible |
not possible |
available |
CPC4 - TC1796 Flash & EEPROM R/W in BSL mode |
19 |
MCM BSL |
included
*as 3CORE |
not possible |
available |
MCM, MCM2, ACM1, ACM2, ACM2.1 unlocked - Flash & EEPROM Read / Write by DC2 in BSL mode |
20 |
MCM2.1 BSL |
not possible |
not possible |
available |
MCM2.1 - Flash & EEPROM Read / Write (unlocked) via DC2. Not supported password protected MCU. |
21 |
MCM2 DC |
not possible |
not possible |
available |
MCM2 Flash & EEPROM Read/Write via DirectConnect2 tool box in Software mode |
22 |
MCM2.1 DC |
not possible |
not possible |
available |
MCM2.1 (locked/unlocked) Flash & EEPROM Read/Write via DC2 in Software mode. |
23 |
ACM2 DC |
not possible |
not possible |
available |
ACM2 Flash & EEPROM Read/Write via DirectConnect2 tool box in Software mode |
24 |
ACM2.1 DC |
not possible |
not possible |
available |
ACM2.1 (locked/unlocked) Flash & EEPROM Read/Write via DC2 tool in Software mode. |
25 |
MCM OBD |
not possible |
available |
available |
MCM1 Flash & exEEPROM Read / Write by OBD. |
26 |
MCM2 OBD |
not possible |
available |
available |
MCM2 Flash & exEEPROM Read / Write by OBD. |
27 |
MCM2.1 OBD |
not possible |
available |
available |
MCM2.1 (locked/unlocked) Flash & exEEPROM Read / Write by OBD. |
28 |
ACM2 OBD |
not possible |
available |
available |
ACM2 Flash & exEEPROM Read / Write by OBD. |
29 |
ACM2.1 OBD |
not possible |
available |
available |
ACM2.1 (locked/unlocked) Flash & exEEPROM Read / Write by OBD. |
30 |
EIS ISP |
not possible |
not possible |
available |
SFTP EIS Read/Write Flash&EEPROM by DC2U in ISP mode. D70F3628 |
31 |
SFTP CALC |
not possible |
not possible |
available |
MB SFTP (MP4) VeDoc/Fdok XS; XT; XN; X1; X2; X8 |
32 |
MAN KEYS |
included
*not works |
included |
available |
Key programming on MAN FFR and PTM.
Parring EDC7-PTM, EDC7-FFR, MS6-FFR |
33 |
MAN FFR |
not possible |
available |
available |
MAN FFR memory R/W. OBD and DC2 |
34 |
MAN FFR BSL |
not possible |
not possible |
available |
MAN FFR - Flash & EEPROM Read / Write in BSL mode |
35 |
MAN PTM DC |
not possible |
not possible |
available |
MAN PTM - Flash & EEPROM Read / Write by DC2 |
36 |
MAN EDC7 DC |
not possible |
not possible |
available |
MAN EDC7 - Flash Read / Write by DC2. EEPROM read not available |
37 |
IVECO VCM2 |
not possible |
not possible |
available |
IVECO VCM2 TC1765 FLASH EEPROM Read/Write by OBD or DC2 |
38 |
IVECO VCM2 BSL |
not possible |
not possible |
available |
IVECO VCM2 TC1765 FLASH EEPROM Read/Write by DC2 in BSL mode |
39 |
IVECO VCM3 BSL |
not possible |
not possible |
available |
IVECO VCM3 MB91F469G FLASH EEPROM Read/Write by DC2 in BSL mode |
40 |
IVECO CALC |
not possible |
not possible |
available |
IVECO VCM PIN calculation. OBD or DC2 |
41 |
MB EXTRA |
included |
included |
available |
Speed limit R/W for FR/CPC; Torque limit R/W; AdBlue error Erase. MP3 |
42 |
CPC3 EXTRA |
not possible |
included |
available |
Speed limit R/W for CPC3; MP4 (SFTP) |
43 |
ADM EXTRA |
included |
included |
available |
Speed limit R/W for ADM3; |
44 |
MB DIAG |
included |
included |
available |
MB Fault codes DTC Read/Erase; All code descriptions. OBD/DC2. PLD and MCM systems. |
45 |
MAN DIAG |
not possible |
not possible |
available |
MAN Fault codes DTC Read/Erase; All code descriptions. OBD/DC2 EDC7 and FFR system only |
46 |
Android |
not possible |
not possible |
available |
Truck Explorer Android license |
47 |
Update/support |
only support |
only support |
available |
12 months updates & support subscription included in a kit |
Included hardware:
Nr |
Hardware name |
1 |
VEI V3 device |
2 |
USB A -B |
3 |
DirectConnect1 cable with Transreader |
4 |
MB14pin round adapter |
Not included: DC-FR/CPC adapter, DC-MCM adapter, MAN 12-pin cable.
Included licenses:
MB MEMO, MB KEYS, MAN KEYS, MB CALC, 2011+, 3CORE, FR, DC, DIAG, EXTRA.
All licenses NOT have updates from 2014 year.
Included:
Support for 12 months.
Warranty for hardware 12 months
Software available in several languages: English, Dutch, French, Spanish, Portuguese, Russian, Lithuanian, Arabic, Persian
Full description:
1. License MB MEMO
A program module for Read & Write FLASH & EEPROMs of engine control module PLD/MR based on microprocessor C167 without internal flash. This function allows making a clone of MR memory. Your read one MR, save to *.bin file (RAW format and not encrypted, scrambled), and write it to another MR memory. The software module (MB MEMO) is especially useful for chip-tuning work and recovering unit after the broken update.
Function available thru OBD connection or direct connection with Direct Connect cable OBD connection support firmware access mode only. Direct Connect connection type support firmware and BSL (Boot Strap Loader) mode. BSL mode requires PLD cover disassembling.
Software module includes automatic checksum (main application and fuel map) recalculation.
2. License 2011+
For PLD memory read and write operation (category memo) PLD with XC2287 secured microprocessor.
Open access Read & Write memory for PLD, made on 2011 and later, with microprocessor Infineon XC2287.
Software module support PLD with firmware versions: 22B, 23E, 24B.
Does not support PLD with LOCKED firmware versions: 23F, 24C, 25B, 26x, 30C.
3. License MB KEYS
Key transponder programming module allows program up to 8 keys for Mercedes trucks, engine and drive control units.
Allows adding new keys for the Mercedes truck over OBD or DirectConnect cable with Transreader. Operations can be done offline, the only connection to the vehicle or ECU (PLD/MR) required.
It is possible to make up to 8 new keys without a resent key. Erase all programmed keys. Switch immobilizer system off (IMMO OFF) (required for vehicles with immobilizer faults). Or enable truck immobilizer system.
4. License MAN KEYS
Allows program transponder key to MAN truck and buses immobilizer memory.
Allows add up to 8 new keys, without MASTER KEY, for the MAN truck over OBD.
Key transponder programming can be done offline for MAN truck equipped FFR.
*License does not work properly.
5. License FR.
Read/write FR or CPC by OBD
Immo off in FR and MR by OBD.
Supported FR; CPC.
Not all FR, CPC firmware versions are supported.
Not supported: CPC2 NAFTA; CPC2+ NAFTA; CPC4 NAFTA; CPC3; ADM2; ADM3....
DC-FR/CPC adapter is not included.
6. License MB CALC
MB VeDoc and FDOK calculators - calculates access codes for VeDoc (X1, X2, X8) and FDOK ( XT, XN ) algorithms.
Must be used together with XENTRY (DAS) software and compatible diagnostic tool where these codes are asked. All operations are done offline, the only connection to the truck required for VEDOC.
For FDOK calculations not needed connection to the truck. FDOK code for new and old DAS.
DAS password generator - calculates password asked by DAS to access some special functions (MR downgrade from Euro4, Euro5 to Euro3)
7. License 3CORE
Read & Write full access for MCM and ACM control units memory over DirectConnect cable.
Type 1. Continental MCM1 (MCU TC1796-256F / TriCore 1 EEPROM M95128).
Type 2. Continental MCM2 (MCU TC1796-256F / TriCore 1 EEPROM M95640).
Type 3. Continental MCM2 (MCU TC1796-256F / TriCore 1 EEPROM M95640).
Not all MCM, ACM modules versions are supported.
DC-MCM/ACM adapter not included.

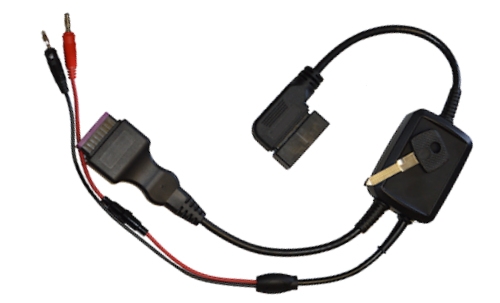

8. DirectConnect cable with Transreader inside.
DirectConnect cable to connect the VEI device directly to the MR (PLD). No need connection to the truck.
MR Flash and EEPROM memory read/write, key programming, diagnostic.
9. License MB DIAG
It able to Read DTC with the error description. Clear DTC.
Read and Erase fault codes.
VANs not supported.
10. License MB Extra
Speed limit change on MP3 trucks. (Applicable for FR and CPC drive control modules).
NOx torque limit.
Erase exhaust faults (AdBlue system fault source repair must be done firstly)
|
