    Truck Explorer V4


Truck Explorer V4
Truck Explorer V4

Truck Explorer V4

Truck Explorer V4

Truck Explorer V4


Truck Explorer V4



Product code:   V42018004

Price:   1800.00 €


TRUCK EXPLORER V4  (2018)


Truck Explorer V4 kit has main operations for Mercedes and MAN trucks.
All licenses at 2018/10 year state status.
Software version 5.9.
VEI V4 device does not have the WIFI mode, works only via USB.

VEI V4 supports DC, DC2, DC2M. Not supported with DC2U. DC2 and DC2M no longer in stock.

Truck Explorer V4 kit does not get any updates, but could be upgraded to V6 until 2021-01-01. For conditions, please contact our sales managers.

You will find the licenses that are already included and licenses available to add additionally in the table below.
All additional licenses could be added for the standard prices.


Included licenses:

    V3 V4 V6
  Software v.: 3.0 5.9 6.xx
  License: 2014 2018 2019 or later     Functions
1 MB MEMO included included available PLD (MR)  external FLASH & EEPROMs Read&Write by OBD;  Checksum. By OBD or DC/DC2
2 MB KEYS included included available Key programming on PLD (MR).  MR and FR IMMO OFF. By OBD or DC/DC2
3 MB CALC included included available Calculates codes for VeDoc ( X1, X2, X8);  FDOK (XT, XS, XN) algorithms
4 2011+ included included available MEMO; KEYS; CALC functionality with Continental PLD based on XC2287 CPU. PLD firmware v.: 22B; 23E; 24B. By OBD or DC/DC2
5 2014+ not possible included available MEMO; KEYS; CALC functionality with MR Continental XC2287 firmware v.: 23F; 24C; 25B, 26x; By DC/DC2
6 2018+ not possible not possible available MEMO; KEYS; CALC functionality with MR2 XC2288H Continental PLD  firmware v.: 30C; By DC2
7 GS2 DC not possible not possible available Gearbox ECU GS2 (EPS3) Read/Write with DC2U tool. VEI V6 is needed.
8 DC included included available Operations by Direct Connection 1 cable
DC cable is included.
9 DC2 not possible included available Operations by DC2 or DC2M2 tool.
DC2U is NOT supported.
10 CRV not possible included available S, ML, GL class CRV & CRV2 Flash&EEPROM R/W via OBD
11 CR (CDI) not possible included available V-class CR1 Flash & EEPROM R/W; WSP-CR pairing
12 FR included
*not all versions
included available FR&CPC - C167, ST10F276 Flash & EEPROM R/W.
OBD and DC2 mode
13 FR BSL not possible available available FR1; FR2 - C167 Flash & EEPROM R/W in BSL mode
14 CPC BSL not possible available available CPC0; CPC1 - ST10F276 Flash & EEPROM R/W in BSL mode
15 ADM BSL not possible available available ADM2; ADM3 - Flash & EEPROM R/W in BSL mode
16 CPC4 OBD not possible not possible available CPC4 - TC1796 Flash & EEPROM R/W by OBD
17 CPC4 DC not possible not possible available CPC4 - TC1796 Flash & EEPROM R/W in DC mode
18 CPC4 BSL not possible not possible available CPC4 - TC1796 Flash & EEPROM R/W in BSL mode
19 MCM BSL included
*not all versions
available available MCM, MCM2, ACM1, ACM2, ACM2.1 unlocked - Flash & EEPROM Read / Write by DC2 in BSL mode
20 MCM2.1 BSL not possible available available MCM2.1 - Flash & EEPROM Read / Write (unlocked) via DC2. Not supported password protected MCU.
21 MCM2 DC not possible available available MCM2 Flash & EEPROM Read/Write via DirectConnect2 tool box in  Software mode
22 MCM2.1 DC not possible available available MCM2.1 (locked/unlocked) Flash & EEPROM Read/Write via DC2 in Software mode.
23 ACM2 DC not possible available available ACM2 Flash & EEPROM Read/Write  via DirectConnect2 tool box in Software mode
24 ACM2.1 DC not possible available available ACM2.1 (locked/unlocked) Flash & EEPROM Read/Write via DC2 tool in Software mode.
25 MCM OBD not possible available available MCM1 Flash & exEEPROM Read / Write by OBD.
26 MCM2 OBD not possible available available MCM2 Flash & exEEPROM Read / Write by OBD.
27 MCM2.1 OBD not possible available available MCM2.1 (locked/unlocked) Flash & exEEPROM Read / Write by OBD.
28 ACM2 OBD not possible available available ACM2 Flash & exEEPROM Read / Write by OBD.
29 ACM2.1 OBD not possible available available ACM2.1 (locked/unlocked) Flash & exEEPROM Read / Write by OBD.
30 EIS ISP not possible not possible available SFTP EIS Read/Write Flash&EEPROM by DC2U in ISP mode. D70F3628
31 SFTP CALC not possible available available MB SFTP (MP4) VeDoc/Fdok XS; XT; XN; X1; X2; X8
32 MAN KEYS included
*not works
included available Key programming on MAN FFR and PTM.
Parring EDC7-PTM, EDC7-FFR, MS6-FFR
33 MAN FFR not possible available available MAN FFR memory R/W. OBD and DC2
34 MAN FFR BSL not possible available available MAN FFR - Flash & EEPROM Read / Write in BSL mode
35 MAN PTM DC not possible not possible available MAN PTM - Flash & EEPROM Read / Write by DC2
36 MAN EDC7 DC not possible not possible available MAN EDC7 - Flash Read / Write by DC2.  EEPROM read not available
37 IVECO VCM2 not possible not possible available IVECO VCM2 TC1765 FLASH EEPROM Read/Write by OBD or DC2
38 IVECO VCM2 BSL not possible not possible available IVECO VCM2 TC1765 FLASH EEPROM Read/Write by DC2 in BSL mode
39 IVECO VCM3 BSL not possible not possible available IVECO VCM3 MB91F469G FLASH EEPROM Read/Write by DC2 in BSL mode
40 IVECO CALC not possible not possible available IVECO VCM PIN calculation. OBD or DC2
41 MB EXTRA included included available Speed limit R/W for FR/CPC; Torque limit R/W; AdBlue error Erase. MP3
42 CPC3 EXTRA not possible included available Speed limit R/W for CPC3; MP4 (SFTP)
43 ADM EXTRA included included available Speed limit R/W for ADM3;
44 MB DIAG included included available MB Fault codes DTC Read/Erase; All code descriptions. OBD/DC2. PLD and MCM systems.
45 MAN DIAG not possible not possible available MAN Fault codes DTC Read/Erase; All code descriptions. OBD/DC2  EDC7 and FFR system only
46 Android not possible not possible available Truck Explorer Android license
47 Update/support only support only support available 12 months updates & support subscription included in a kit



Included hardware:

Nr Hardware name
1 VEI V4 device
2 USB A -B

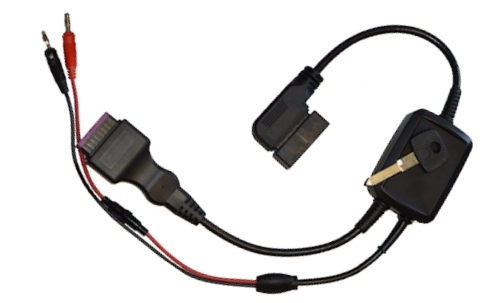

3 DirectConnect1 cable with Transreader
4 MB14pin round adapter

Included:
Support for 12 months.
Warranty for hardware 12 months

All licenses NOT have updates from 2018/10.
